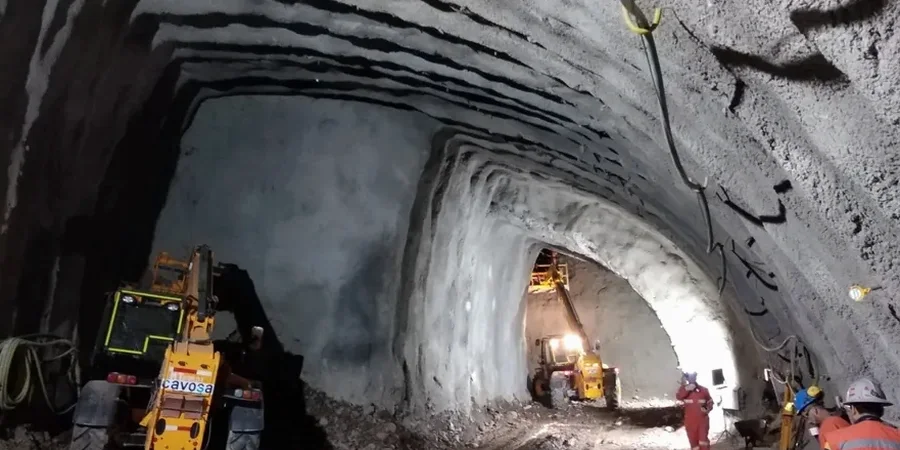

The first thing that arrives on site for a soft ground tunnel investigation in Warrington is usually the CPT rig—a 20-tonne truck with a hydraulic ram capable of pushing a cone penetrometer 30 metres into the ground at a constant rate of 20 mm/s. We set up over the proposed alignment, often within a few hundred metres of the Mersey floodplain where the superficial deposits mask the underlying Mercia Mudstone, and begin logging tip resistance, sleeve friction, and pore pressure every 10 mm. These continuous profiles reveal the transition from the St. Helens Sand and Till into the weathered mudstone that governs tunnel face behaviour. For projects near the Manchester Ship Canal, where the drift thickness can exceed 25 metres, the initial CPT data shapes every subsequent decision about face support pressure and settlement mitigation. We frequently pair this with a triaxial test programme to define the effective stress parameters of the Mercia Mudstone under the low confining pressures typical of shallow urban tunnels in the Cheshire basin.
In Warrington’s glacial till, undrained shear strength can vary by a factor of three over just ten metres of tunnel alignment—ignoring that variability is how face collapses begin.
Our approach and scope
One recurring mistake we see in Warrington is assuming that the glacial till behaves like a uniform cohesive material when, in reality, it is a highly heterogeneous mixture of stiff clay, sand lenses, and cobbles that can stop a tunnel boring machine dead if not properly characterised. The till was deposited during the Devensian glaciation and its erratic composition means that a single borehole every 50 metres is simply inadequate for face stability assessment. We insist on a phased investigation approach: stage one uses rotary drilling with triple-tube coring to recover undisturbed samples from the till-mudstone interface, stage two deploys in-situ pressuremeter testing to measure the shear modulus at tunnel depth, and stage three runs a full laboratory suite including consolidated-undrained triaxial tests with pore pressure measurement. This sequence allows us to map the spatial variability of undrained shear strength, which in Warrington can shift from 60 kPa in a soft clay pocket to over 200 kPa in a dense till lens within less than 10 metres of tunnel drive. The data feeds directly into a PLAXIS 3D model where we simulate the staged excavation and assess the risk of face collapse or excessive surface settlement beneath the Victorian-era infrastructure that characterises the town centre.
Site-specific factors
Warrington sits at just 8 metres above sea level along the Mersey floodplain, and this low-lying geography, combined with a population of over 210,000, means that any tunnelling-induced settlement has the potential to affect a dense network of residential streets, canal infrastructure, and the West Coast Main Line railway corridor that slices through the town. The Mercia Mudstone Group beneath Warrington is notorious for its time-dependent swelling behaviour: when unloaded by tunnel excavation, the mudstone can absorb groundwater and expand, generating heave pressures that distort the tunnel lining years after construction. We model this using the Hoek-Brown failure criterion calibrated to laboratory swelling tests, and we specify a grouting strategy that injects a low-viscosity cement-bentonite mix into the annular gap within 30 minutes of ring installation. Without this, the relaxation zone around the tunnel can propagate upward, intersecting the superficial sands and creating a hydraulic pathway that drains groundwater into the excavation, triggering progressive face instability and surface depressions of 50 mm or more.
Common questions
What is the typical cost of a geotechnical investigation for a soft ground tunnel in Warrington?
For a comprehensive investigation covering a tunnel alignment of 200 to 500 metres, the cost typically ranges from £3,260 to £11,810 depending on the depth, the number of boreholes and CPT soundings required, and the complexity of the laboratory testing programme. A project crossing the Mersey floodplain with deep glacial till will fall toward the upper end due to the need for pressuremeter testing and swelling pressure analysis.
How does the Mercia Mudstone affect tunnel face stability in Warrington?
The Mercia Mudstone in Warrington is a weak, laminated silty claystone that exhibits strain-softening behaviour and time-dependent swelling. When the tunnel face is unsupported, stress relief can trigger progressive failure propagating from bedding planes and fissures. We evaluate this using the Hoek-Brown criterion with a Geological Strength Index (GSI) typically between 35 and 50 for the weathered zone, and we specify a minimum face support pressure of 0.8 bar for shallow tunnels to prevent chimney failure extending to the surface.
What BS and Eurocode standards govern soft ground tunnel investigations in the UK?
The primary standard is BS 5930:2015+A1:2020 for ground investigation practice, together with Eurocode 7 (BS EN 1997-1:2004+A1:2013) for geotechnical design. For field testing we follow BS EN ISO 22476 for CPT and pressuremeter work, and for laboratory testing BS EN ISO 17892 governs the triaxial and index testing programme. Tunnel-specific guidance is provided by CIRIA C760 and the British Tunnelling Society’s specification for tunnelling.
