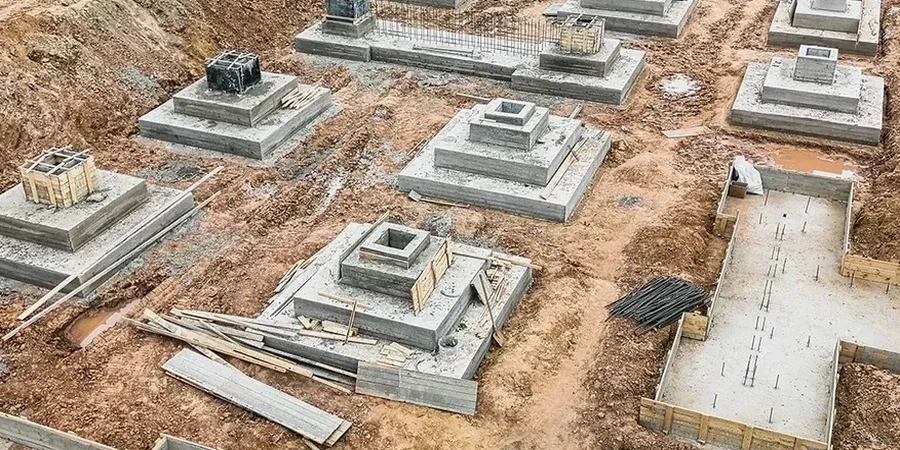

Pile Foundation Design for Warrington Construction Projects

The ground beneath Warrington doesn't read textbooks. A site near Sankey Valley might hit dense glacial till at four metres, while one closer to the Mersey floodplain encounters soft alluvial silts stretching past twelve. These contrasts define the challenge of pile foundation design in this town. We see it on every borehole log: the Devensian till that underlies much of the borough is competent but riddled with sand lenses and cobble beds that can deflect augers and complicate casing. Overlying it, particularly south of the Ship Canal, are pockets of made ground and compressible organic clays that offer negligible bearing. Designing a pile here means reconciling these abrupt lateral changes with structural loads, settlement tolerances, and construction access. The investigation phase dictates everything, which is why we pair rotary drilling with in-situ testing to map the till surface accurately before a single pile geometry is drafted. For sites with buried obstructions, a test pit excavation provides physical confirmation of ground composition that boreholes alone can miss.

A pile design is only as reliable as the ground model behind it—and in Warrington, that model changes faster than most engineers expect.

Our approach and scope

Warrington's maritime-influenced climate drives soil moisture regimes that fluctuate between saturated winter conditions and summer desiccation in the upper clay crust. This seasonal movement is particularly relevant where piles are socketed into the Mercia Mudstone Group, which underlies the till east of the town centre. The mudstone weathers rapidly upon exposure, so pile bore stability and concrete placement timing become critical quality-control points. Our designs follow the limit state philosophy of Eurocode 7, specifically BS EN 1997-1:2004, with partial factors calibrated to the ground investigation density. We specify pile load tests on working piles where the soil profile varies by more than 30% across the footprint—a common scenario in Warrington's industrial redevelopment zones. When shaft friction in the till proves marginal, we evaluate alternative geometries or combine the pile group with a stone column grid to improve the surrounding mass stiffness, a technique we have applied on several brownfield sites near Birchwood.

Site-specific factors

The rig itself tells the story. A 40-tonne hydraulic piling rig with a long mast and high torque rotary head sits idle while the crew debates whether the auger is hitting a glacial erratic or the top of the mudstone—two very different outcomes for pile toe level. In Warrington's mixed glacial terrain, refusal criteria are rarely straightforward. The bigger risk is soft-ground loss: when the alluvial clays near the Mersey collapse into an unsupported bore, the adjacent ground can settle enough to damage nearby services or structures. We mitigate this with temporary casing driven ahead of the auger and continuous spoil monitoring to detect changes in lithology early. Ignoring a proper ground investigation before piling in this town leads to pile lengths guessed rather than engineered, and the cost of remediating a foundation failure in made ground far exceeds the cost of a thorough CPT campaign up front.

Technical parameters

Parameter	Typical value
Design standard	BS EN 1997-1:2004 (EC7) + UK National Annex
Site investigation depth	≥ 5 m below deepest pile toe, or 3× pile group width
Typical pile types evaluated	CFA, driven precast, bored cast-in-place
Shaft friction in Glacial Till	40–100 kPa (undrained), β=0.25–0.45 (drained)
Base resistance in Mercia Mudstone	1.5–3.0 MPa (intact), reduced for weathered zone
Settlement criterion	≤ 1% of pile diameter for serviceability limit state
Load test specification	ICE SPERW guidelines; static maintained-load to 1.5 × SLS load

Related services

Geotechnical Interpretative Report & Pile Design

Synthesis of borehole logs, CPT soundings, and lab triaxial data into a ground model that feeds directly into pile capacity calculations. Deliverables include pile schedule drawings, material specifications, and settlement predictions under serviceability loads.

Pile Load Testing & Verification

Static maintained-load tests on trial and working piles, instrumented with telltales and strain gauges where required. We supervise the test, interpret the load–settlement curve, and confirm or adjust the design parameters.

Common questions

What's the typical cost for a pile foundation design package in Warrington?

For a standard residential or light commercial project with 6–20 piles, the design package usually falls between £1,320 and £5,420, depending on the complexity of the ground conditions and the number of load tests specified. Large industrial schemes with multiple pile groups and dynamic testing requirements will sit at the upper end or beyond.

How do you determine whether CFA or driven piles are more suitable for a Warrington site?

The decision hinges on the depth to competent till, the presence of obstructions in made ground, and vibration sensitivity of adjacent structures. CFA rigs install quickly through soft alluvium but struggle with cobble beds; driven precast piles handle obstructions better but generate noise and vibration. We run a technical options appraisal using the site investigation data.

Do you need to test every pile on a Warrington project?

No. BS 8004 and the ICE SPERW recommend one preliminary test pile per distinct ground condition, plus integrity testing on a percentage of working piles. On sites with highly variable till thickness, we may recommend additional static tests to validate the design profile.

How does the Mersey floodplain affect pile design in Warrington?

The floodplain alluvium typically contains layers of peat and very soft clay with negligible shaft friction. Piles must extend through these layers to socket into the underlying till or mudstone. We also account for downdrag forces from settling fill and seasonal groundwater fluctuations in the ultimate limit state calculations.
